产品名称:华为5G RU专用 DC/DC电源 650W 3路输出 50 V, 5.4 V 辅助输出: -12V

型号:GDC650T5054-P

备注:Servers,Telecom and data communication applications,Industrial equipment

分享到:
  •  Input voltage: 32 - 60 V
  • Output current: 0 - 10.6 A (50 V), 0 - 17.6 A  (5.4 V), 0 - 0.2 A (-12 V)
  • Efficiency: 95% (50 V/10.6 A, 5.4 V/17.6 A, -12V/0 A)
  • Industry nonstandard-brick (L x W x H): 64.8 mm x 50.0 mm x 9.8 mm (2.55 in. x 1.97 in. x0.39 in.)   Weight: 80 g
  • Input undervoltage protection
  • Output overcurrent protection (50 V and 5.4 V,Hiccup mode)
  • Output short circuit protection (50 V and 5.4 V,Hiccup mode)
  • Output overvoltage protection (50 V and 5.4 V,Hiccup mode)
  • Overtemperature protection (Self-recovery)
  • Output voltage trim (5.4 V)
  • PMBus communication
  •  Long-Distance input power supply
  • Power spike
  • TUV, CE, UL certification
  • ​UL60950-1, C22.2 No. 60950-1, and EN60950-1
  • RoHS6 compliant

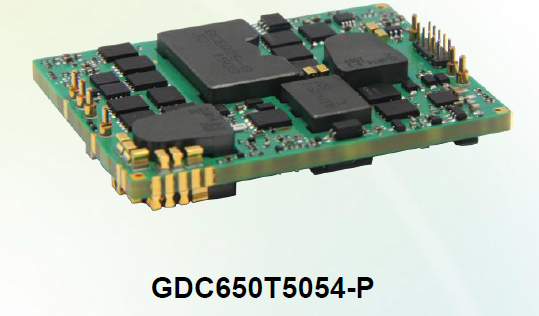

The GDC650T5054-P is a new generation isolated DC-DC converter that uses an industry nonstandard-brick structure, featuring high efficiency and power density with low output ripple and noise. It operates from an input voltage range of 32 V to 60 V, and provides the rated output voltage of 50 V, 5.4 V, and -12 V as well as the rated output power of 650 W.
